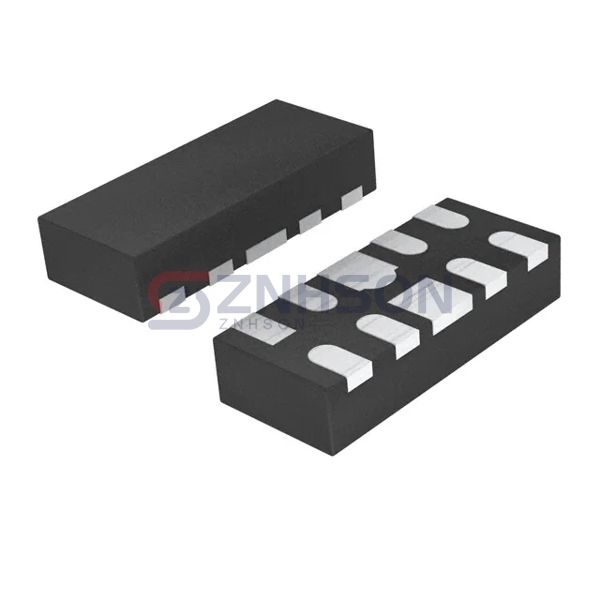

ESD224DQAR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 14VC 10USON
$0.55
Available to order
Reference Price (USD)
3,000+
$0.26796
6,000+
$0.24948
15,000+
$0.24640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Invest in premium circuit protection with Texas Instruments's ESD224DQAR TVS Diodes. These diodes are crafted to defend against ESD and lightning-induced surges in applications like smart home devices, industrial automation, and renewable energy systems. With high surge current ratings and minimal leakage, they offer peace of mind for your designs. Interested? Reach out to us today!
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 4
- Voltage - Reverse Standoff (Typ): 3.6V (Max)
- Voltage - Breakdown (Min): 7.9V
- Voltage - Clamping (Max) @ Ipp: 14V
- Current - Peak Pulse (10/1000µs): 2A (8/20µs)
- Power - Peak Pulse: 17W
- Power Line Protection: No
- Applications: Ethernet, HDMI, USB
- Capacitance @ Frequency: 0.5pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFDFN
- Supplier Device Package: 10-USON (2.5x1)
