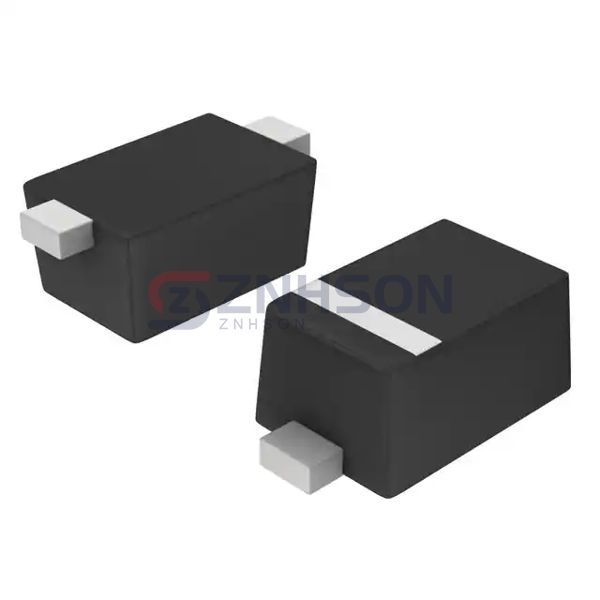

ESD5Z12T1G
onsemi
onsemi
TVS DIODE 12VWM 25VC SOD523
$0.28
Available to order
Reference Price (USD)
3,000+
$0.04899
6,000+
$0.04282
15,000+
$0.03665
30,000+
$0.03460
75,000+
$0.03254
150,000+
$0.02842
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with onsemi's ESD5Z12T1G TVS Diodes, engineered to handle sudden voltage surges effectively. Perfect for telecommunications, power supplies, and data lines, these diodes offer excellent ESD protection and durability. Key features include high power dissipation, compact size, and reliable performance under extreme conditions. Trust onsemi for top-tier circuit protection solutions. Ready to secure your electronics? Submit an inquiry now!
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 14.1V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 9.6A (8/20µs)
- Power - Peak Pulse: 240W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 55pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
