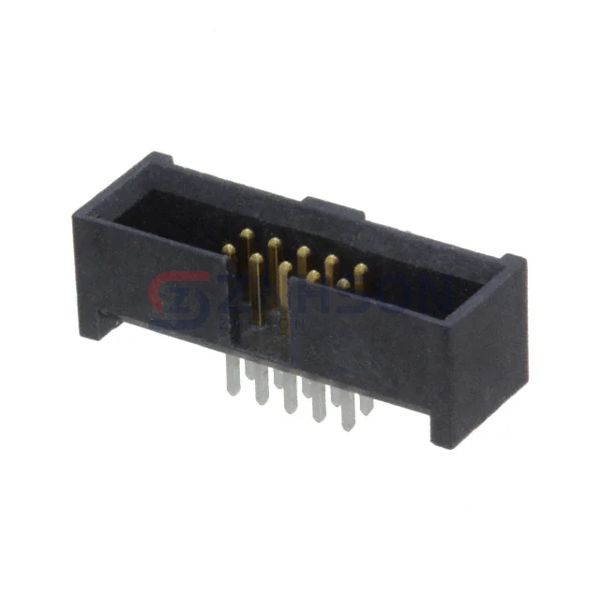

ESHF-105-01-L-D-TH
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 10POS 1.27MM
$4.28
Available to order
Reference Price (USD)
1+
$2.70000
10+
$2.59200
100+
$2.16000
500+
$1.83600
1,000+
$1.56600
5,000+
$1.40400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESHF-105-01-L-D-TH Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.075" (1.91mm)
- Overall Contact Length: -
- Insulation Height: 0.210" (5.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
281275-1
Amphenol ICC (FCI)
77311-146-03LF
Samtec Inc.
FTMH-105-02-L-DH-K
Samtec Inc.
FTSH-134-02-L-DV-A
Samtec Inc.
TSM-106-03-F-SH-K
Samtec Inc.
FTMH-115-03-G-DV-ES-A-P
Samtec Inc.
TSM-106-01-F-SV-LC-P
Amphenol ICC (FCI)

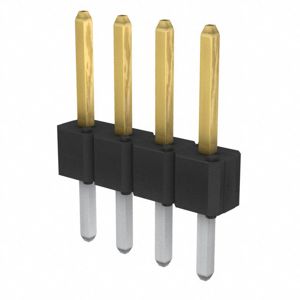

54101-G1004LF
