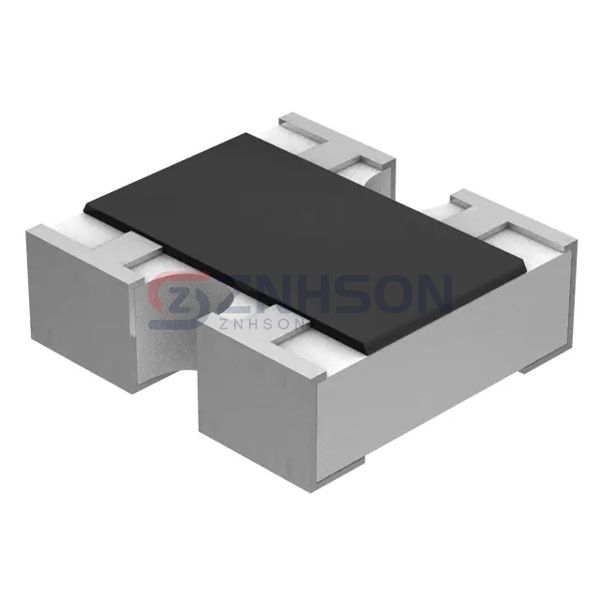

EXB-14V561JX
Panasonic Electronic Components
Panasonic Electronic Components
RES ARRAY 2 RES 560 OHM 0302
$0.03
Available to order
Reference Price (USD)
10,000+
$0.02688
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EXB-14V561JX from Panasonic Electronic Components redefines resistor network performance with its unique thick-film construction, offering superior pulse handling (10x rated power for 1 s). Design engineers trust these arrays for: Motor drive snubber circuits Power supply current sensing Harsh environment IoT nodes. Available in tape-and-reel packaging for automated assembly lines. Partner with us a Top 10 global passive components supplier for just-in-time delivery across 50+ countries.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 560
- Tolerance: ±5%
- Number of Resistors: 2
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 4
- Power Per Element: 31mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 0302 (0805 Metric), Convex, Long Side Terminals
- Supplier Device Package: 0302
- Size / Dimension: 0.031" L x 0.024" W (0.80mm x 0.60mm)
- Height - Seated (Max): 0.018" (0.45mm)
Related Products
Bourns Inc.
4611X-101-202LF
Bourns Inc.
4114R-2-391LF
CTS Resistor Products
770101394P
YAGEO
TC124-FR-07140KL
Bourns Inc.
4814P-1-470LF
YAGEO

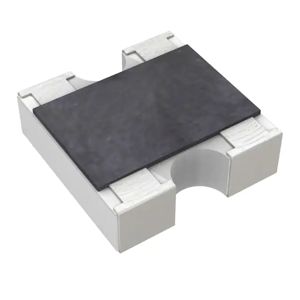

YC162-JR-07330KL
