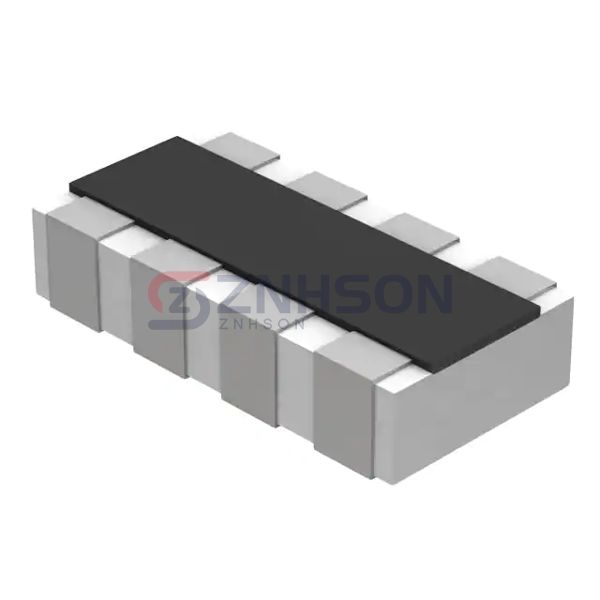

EXB-18V472JX
Panasonic Electronic Components
Panasonic Electronic Components
RES ARRAY 4 RES 4.7K OHM 0502
$0.41
Available to order
Reference Price (USD)
10,000+
$0.03878
30,000+
$0.03684
50,000+
$0.03609
100,000+
$0.03532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Panasonic Electronic Components's EXB-18V472JX resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every EXB-18V472JX unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 4.7k
- Tolerance: ±5%
- Number of Resistors: 4
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 8
- Power Per Element: 31mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 0502 (1406 Metric), Long Side Terminals
- Supplier Device Package: 0502
- Size / Dimension: 0.055" L x 0.024" W (1.40mm x 0.60mm)
- Height - Seated (Max): 0.018" (0.45mm)
