FDM2509NZ
Fairchild Semiconductor
Fairchild Semiconductor
SMALL SIGNAL N-CHANNEL MOSFET
$0.34
Available to order
Reference Price (USD)
3,000+
$0.32015
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDM2509NZ by Fairchild Semiconductor is a must-have in the Discrete Semiconductor Products category, specifically for Transistors - FETs, MOSFETs - Arrays. Designed for high-performance applications, these components feature low RDS(on), high power density, and excellent reliability. They are widely used in automotive, aerospace, and industrial electronics. Let Fairchild Semiconductor s FDM2509NZ be the backbone of your next project contact us for more information and to place your order.
Specifications
- Product Status: Obsolete
- FET Type: 2 N-Channel (Dual)
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 8.7A
- Rds On (Max) @ Id, Vgs: 18mOhm @ 8.7A, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 1200pF @ 10V
- Power - Max: 800mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount

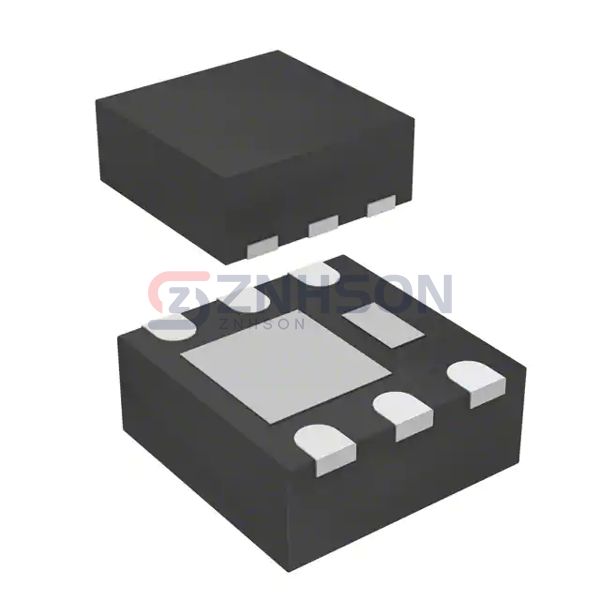

- Package / Case: 6-UDFN Exposed Pad
- Supplier Device Package: MicroFET 2x2 Thin
