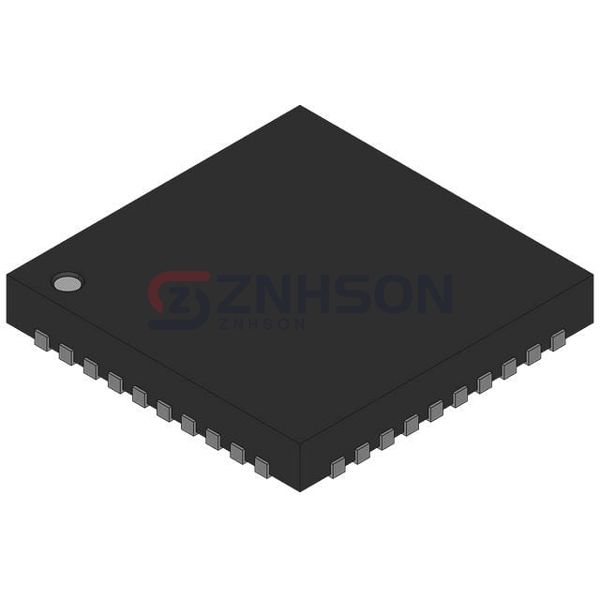

FDMF6706C
Fairchild Semiconductor
Fairchild Semiconductor
HALF BRIDGE BASED MOSFET DRIVER,
$1.99
Available to order
Reference Price (USD)
3,000+
$1.35660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Fairchild Semiconductor FDMF6706C series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge
- Applications: Synchronous Buck Converters
- Interface: PWM
- Load Type: Inductive
- Technology: DrMOS
- Rds On (Typ): 1Ohm LS, 1Ohm HS
- Current - Output / Channel: 40A
- Current - Peak Output: -
- Voltage - Supply: 4.5V ~ 5.5V
- Voltage - Load: 3V ~ 15V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Bootstrap Circuit, Status Flag
- Fault Protection: Over Temperature, Shoot-Through, UVLO
- Mounting Type: Surface Mount
- Package / Case: 40-TFQFN Exposed Pad
- Supplier Device Package: 40-PQFN (6x6)
