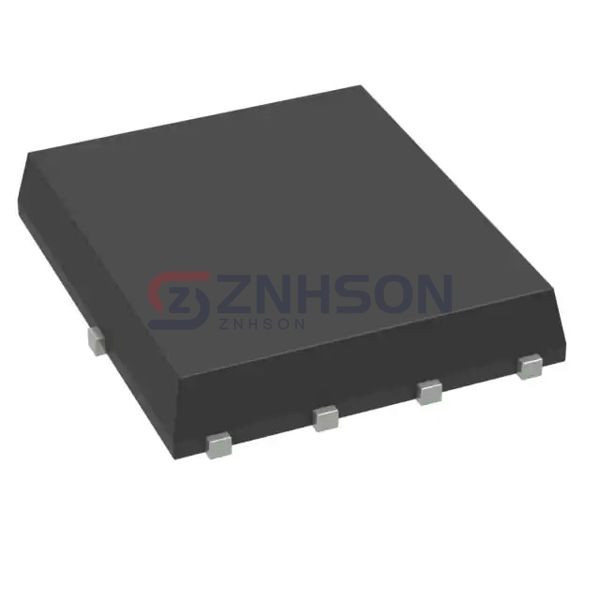

FDMS7698
onsemi
onsemi
MOSFET N-CH 30V 13.5A/22A 8PQFN
$0.73
Available to order
Reference Price (USD)
3,000+
$0.23550
6,000+
$0.22107
15,000+
$0.20664
30,000+
$0.19654
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with FDMS7698, a high-quality Transistors - FETs, MOSFETs - Single from onsemi. This Discrete Semiconductor Products component is built for reliability, featuring enhanced thermal stability and fast response times. Perfect for automotive electronics, power tools, and IoT devices, FDMS7698 provides efficient power management solutions. Contact us today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 13.5A (Ta), 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 10mOhm @ 13.5A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 24 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1605 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 29W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
