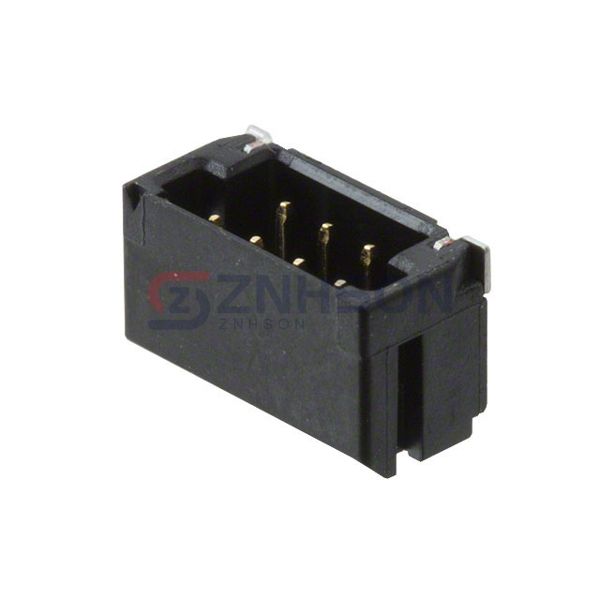

FI-W7P-HFE
JAE Electronics
JAE Electronics
CONN HEADER SMD R/A 7POS 1.25MM
$3.68
Available to order
Reference Price (USD)
1+
$3.25000
10+
$3.12000
100+
$2.60000
500+
$2.21000
1,000+
$1.88500
5,000+
$1.69000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FI-W7P-HFE JAE Electronics Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 7
- Number of Rows: 2
- Row Spacing - Mating: 0.055" (1.40mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin or Tin-Alloy
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 200V
