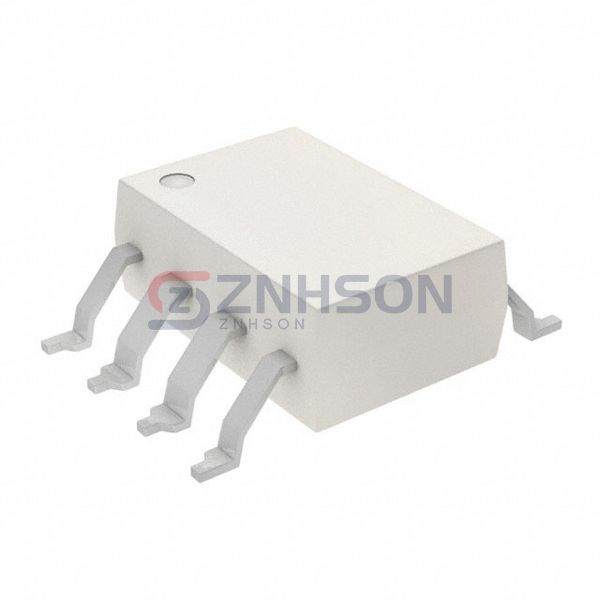

FOD3120TSR2
Fairchild Semiconductor
Fairchild Semiconductor
FET OUTPUT OPTOCOUPLER
$1.19
Available to order
Reference Price (USD)
700+
$1.35520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your system s efficiency with Fairchild Semiconductor FOD3120TSR2 Gate Driver Isolators, built for rugged industrial environments. Highlights include high-speed data transfer, thermal shutdown protection, and robust construction. Ideal for servo drives, renewable energy converters, and medical devices, these isolators deliver consistent performance. Let s discuss your needs reach out today!
Specifications
- Product Status: Obsolete
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 400ns, 400ns
- Pulse Width Distortion (Max): 100ns
- Rise / Fall Time (Typ): 60ns, 60ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 3A
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-SMD
- Approval Agency: UL
