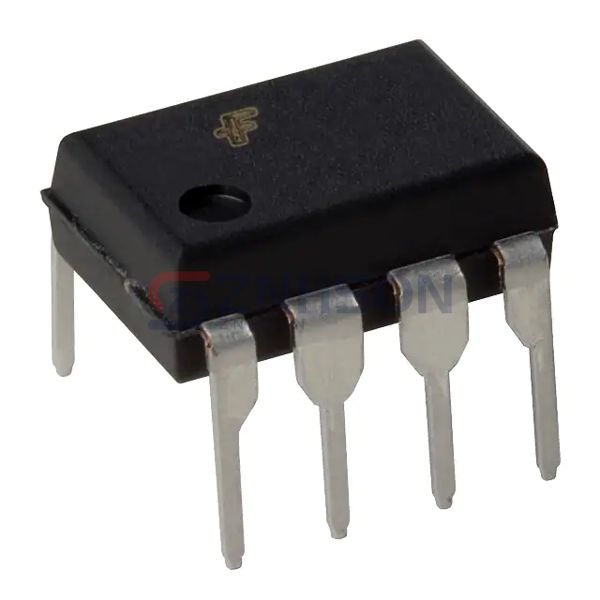

FOD3184
onsemi
onsemi
OPTOISO 5KV 1CH GATE DRIVER 8DIP
$3.38
Available to order
Reference Price (USD)
1+
$2.70000
10+
$2.38700
100+
$1.54000
500+
$1.23200
1,000+
$1.05875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The onsemi FOD3184 Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 210ns, 210ns
- Pulse Width Distortion (Max): 65ns
- Rise / Fall Time (Typ): 38ns, 24ns
- Current - Output High, Low: 2.5A, 2.5A
- Current - Peak Output: 3A
- Voltage - Forward (Vf) (Typ): 1.43V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- Approval Agency: UL
