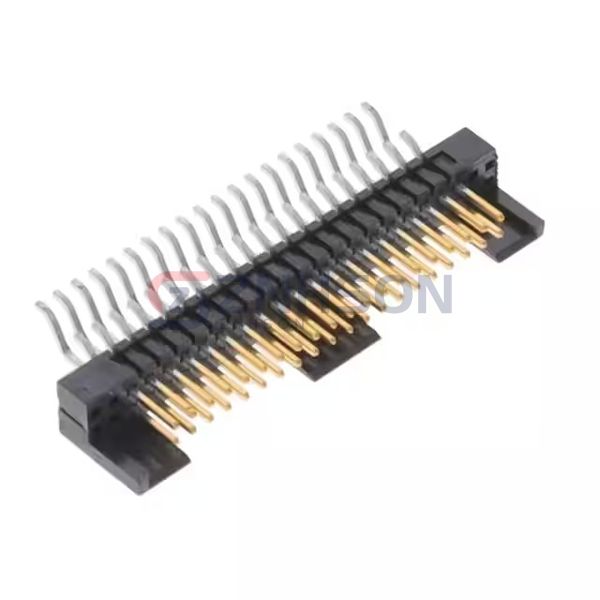

FSH-120-04-F-DH
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 40POS 1.27MM
$10.12
Available to order
Reference Price (USD)
1+
$6.05000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FSH-120-04-F-DH Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.145" (3.70mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.155" (3.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: End Shrouds
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 2.6A per Contact
- Voltage Rating: -
