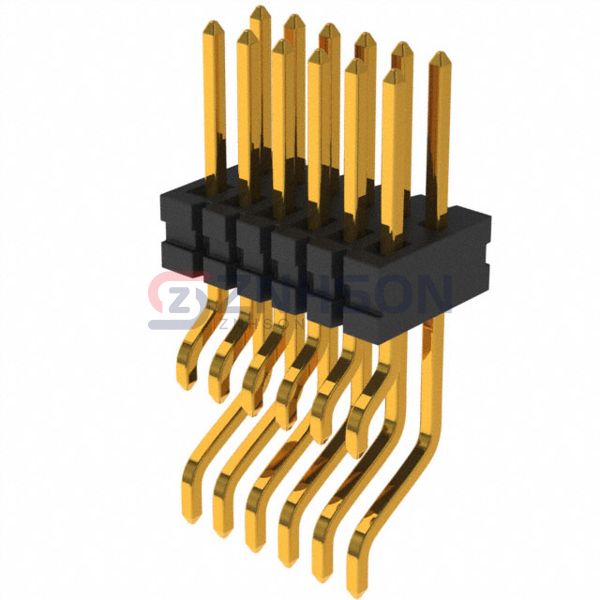

FTE-106-02-G-DH
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 12POS 0.8MM
$5.43
Available to order
Reference Price (USD)
1+
$3.10000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTE-106-02-G-DH Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.047" (1.20mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.175" (4.45mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.120" (3.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.7A per Contact
- Voltage Rating: -
