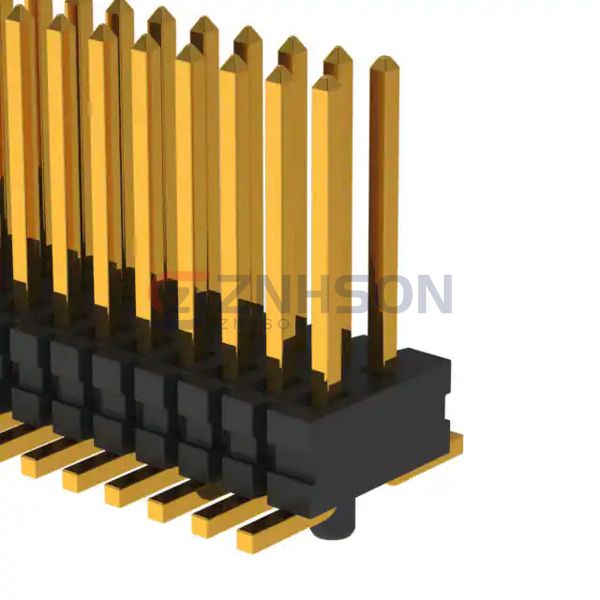

FTE-109-01-G-DV-A
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 18POS 0.8MM
$6.63
Available to order
Reference Price (USD)
1+
$4.13000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTE-109-01-G-DV-A Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.047" (1.20mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.075" (1.90mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.055" (1.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.7A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-292228-7
Samtec Inc.
HTSW-126-08-G-D-RA
Preci-Dip
894-70-069-10-003101
Samtec Inc.
TSM-120-04-L-DV-P
Samtec Inc.
FTSH-105-02-F-DV-007-P
Molex
1723161104
Sullins Connector Solutions

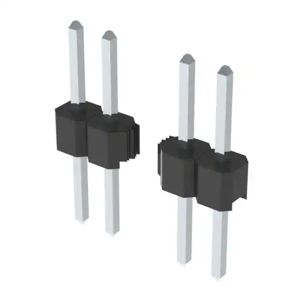

PREC024SABN-RC
