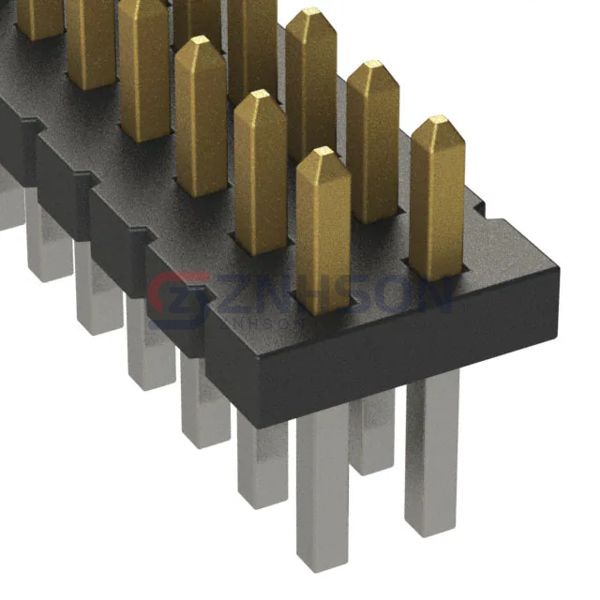

FTS-129-02-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 58POS 1.27MM
$10.41
Available to order
Reference Price (USD)
1+
$6.22000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTS-129-02-L-D Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 58
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.075" (1.90mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.199" (5.05mm)
- Insulation Height: 0.034" (0.86mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
95278-102A14LF
Amphenol ICC (FCI)
77313-422-26LF
Preci-Dip
350-80-110-00-018101
TE Connectivity AMP Connectors
102153-9
Samtec Inc.
TSW-127-23-S-D
Samtec Inc.
TMM-115-02-T-D
TE Connectivity AMP Connectors
2-104351-0
Amphenol ICC (FCI)
77313-801-54LF

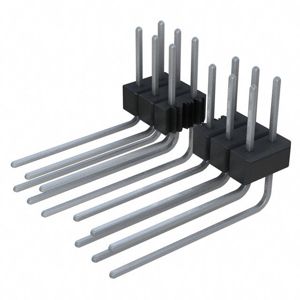

Sullins Connector Solutions
