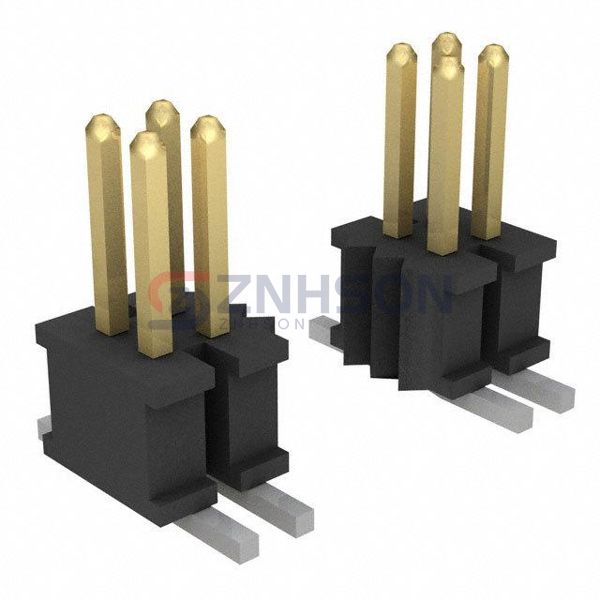

FTSH-105-01-L-DV
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 10POS 1.27MM
$1.55
Available to order
Reference Price (USD)
1+
$1.43000
10+
$1.29900
25+
$1.22000
50+
$1.16680
100+
$1.11380
250+
$1.00776
500+
$0.92820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTSH-105-01-L-DV Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.099" (2.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
Preci-Dip
892-18-004-10-003101
Samtec Inc.
FTSH-113-05-L-DV-A
Molex
0026584120
TE Connectivity AMP Connectors
147377-1
Molex
0015311046
Samtec Inc.
TMM-102-02-TM-S
Samtec Inc.
TMM-125-06-F-D-SM-A-P-TR
Molex

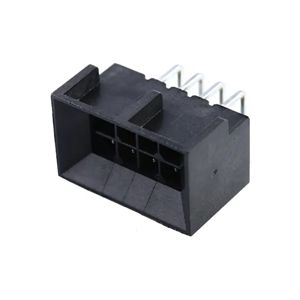

0444280804
