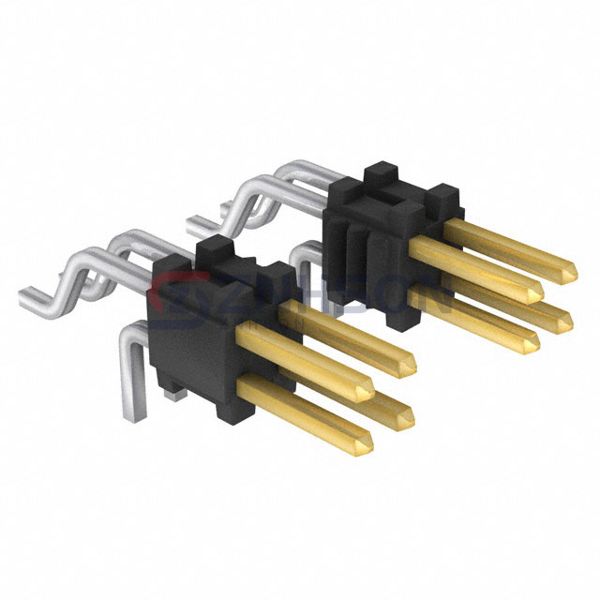

FTSH-118-04-L-MT

Specifications

• Product Status: Active
• Connector Type: Header, Cuttable
• Contact Type: Male Pin
• Pitch - Mating: 0.050" (1.27mm)
• Number of Positions: 36
• Number of Rows: 2
• Row Spacing - Mating: 0.050" (1.27mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Unshrouded
• Mounting Type: Surface Mount, Right Angle; Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.150" (3.81mm)
• Contact Length - Post: 0.090" (2.29mm)
• Overall Contact Length: -
• Insulation Height: 0.135" (3.43mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: -
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3.4A per Contact
• Voltage Rating: -
