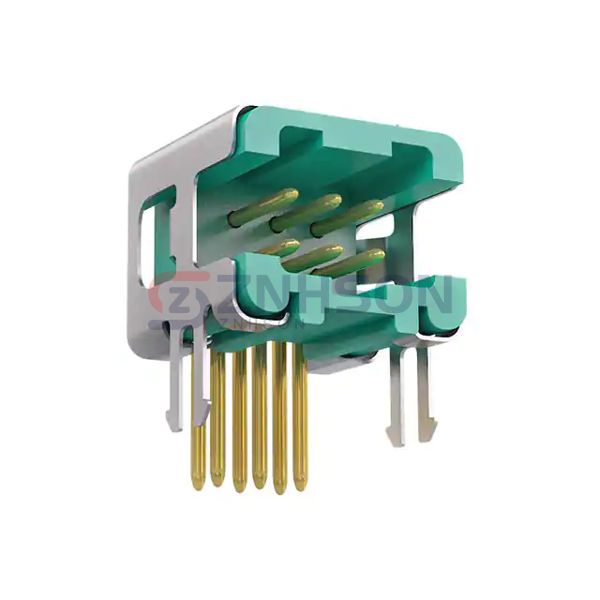

G125-MH10605L5P
Harwin Inc.
Harwin Inc.
CONN HEADER R/A 6POS 1.25MM
$8.74
Available to order
Reference Price (USD)
1+
$6.87000
10+
$6.58000
100+
$5.43590
500+
$4.57760
1,000+
$4.00540
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G125-MH10605L5P Harwin Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Board Lock
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A
- Voltage Rating: 250V
