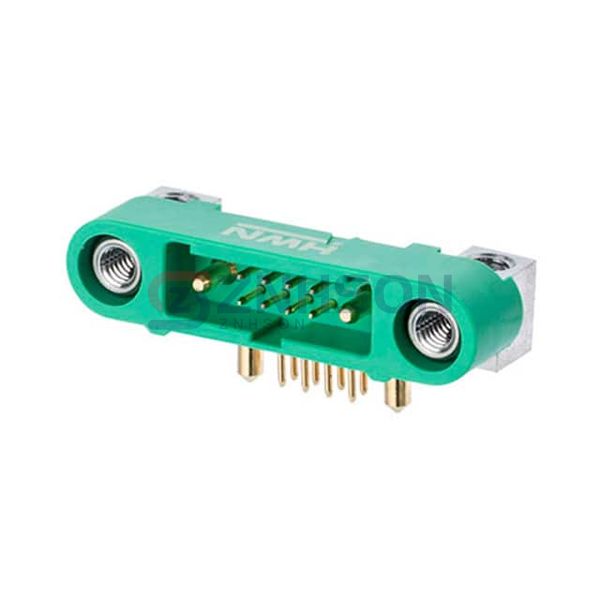

G125-MH10805M4-1AD1ADP

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.049" (1.25mm)
• Number of Positions: 10 (8 + 2 Power)
• Number of Rows: 2
• Row Spacing - Mating: 0.049" (1.25mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Screw Lock
• Contact Length - Mating: -
• Contact Length - Post: 0.130" (3.30mm)
• Overall Contact Length: -
• Insulation Height: 0.207" (5.25mm)
• Contact Shape: Circular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Gold
• Contact Material: Phosphor Bronze
• Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
• Features: Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
• Operating Temperature: -65°C ~ 150°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Green
• Current Rating (Amps): 2A, 10A
• Voltage Rating: 450V
