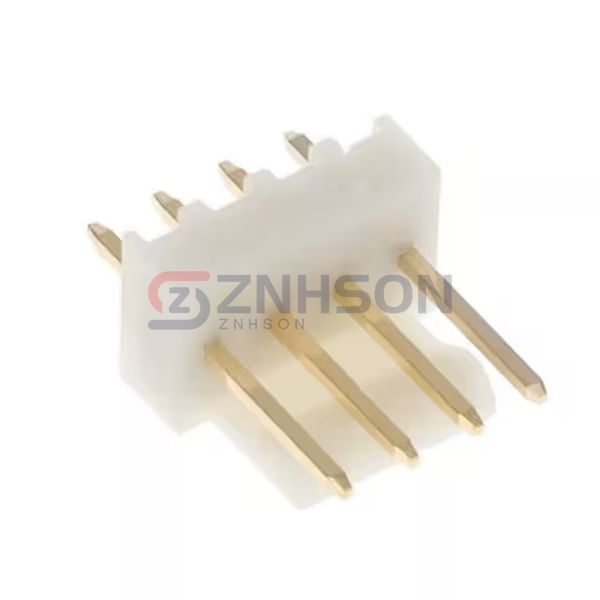

G861AB04221T2EU
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
WAFER 2.54MM PITCH STR DIP,1X4PI
$0.50
Available to order
Reference Price (USD)
1+
$0.50000
500+
$0.495
1000+
$0.49
1500+
$0.485
2000+
$0.48
2500+
$0.475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with G861AB04221T2EU Amphenol ICC (Commercial Products) Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.299" (7.60mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.559" (14.20mm)
- Insulation Height: 0.327" (8.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC/DC
