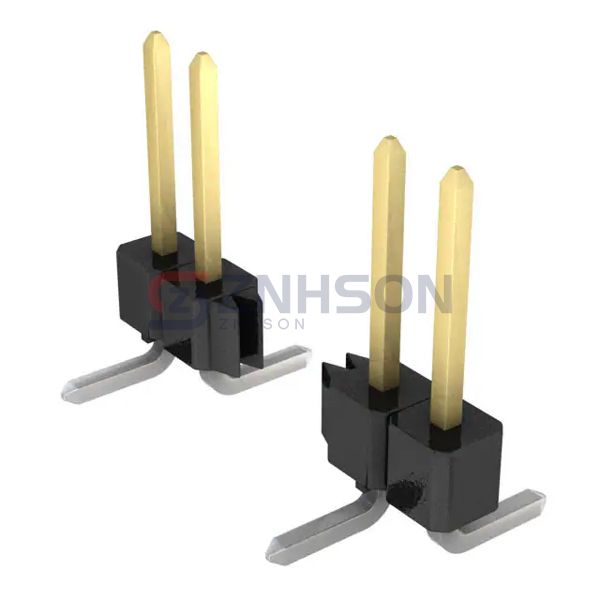

GBC20SFBN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 20POS 2.54MM
$2.80
Available to order
Reference Price (USD)
1+
$2.80000
10+
$2.68800
25+
$2.46400
50+
$2.35200
100+
$2.24000
250+
$1.96000
500+
$1.90400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with GBC20SFBN-M30 Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-109-04-L-MT
TE Connectivity AMP Connectors
103328-1
Amphenol ICC (FCI)
95293-101A04LF
Samtec Inc.
TFM-115-02-S-D-LC-TR
Samtec Inc.
FTMH-108-03-L-DH-K-TR
Samtec Inc.

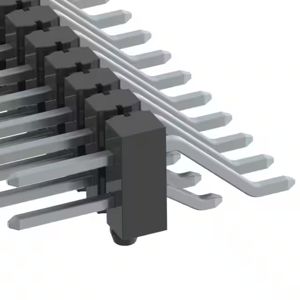

TSM-122-01-T-DH-A
Sullins Connector Solutions

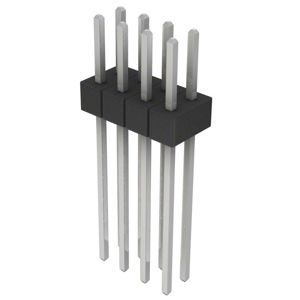

PEC04DAFN
Samtec Inc.

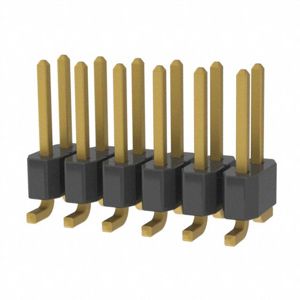

TSM-106-01-H-DV
Samtec Inc.

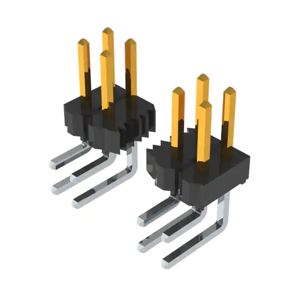

TSW-106-08-F-D-RA
