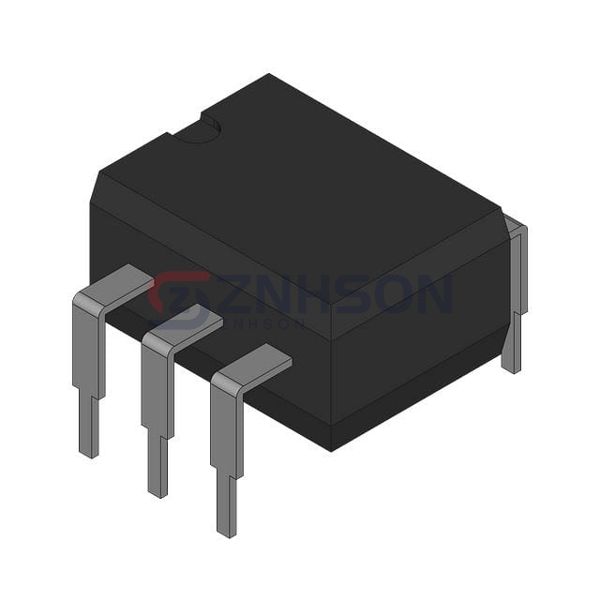

H11AA3M
Fairchild Semiconductor
Fairchild Semiconductor
AC IN-DARLINGTON OUT OPTOCOUPLER
$0.14
Available to order
Reference Price (USD)
1,040+
$0.22410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's reliability with H11AA3M Optoisolators by Fairchild Semiconductor, featuring advanced Photovoltaic Output technology. Perfect for use in audio equipment, lighting controls, and instrumentation, these isolators deliver high voltage isolation and low signal distortion. Fairchild Semiconductor guarantees components that meet rigorous industry standards. Don't wait get in touch today for expert advice and competitive pricing!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 10mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 10µs, 10µs (Max)
- Rise / Fall Time (Typ): 10µs, 10µs (Max)
- Input Type: AC, DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 80V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
Related Products
Vishay Semiconductor Opto Division
ILD621-X007T
Renesas Electronics America Inc
PS2733-1-A
Vishay Semiconductor Opto Division
CNY64AYST
SHARP/Socle Technology
PC355NJ0000F
Everlight Electronics Co Ltd
H11A1S(TA)
Broadcom Limited
HCPL-4701-360E
Renesas Electronics America Inc

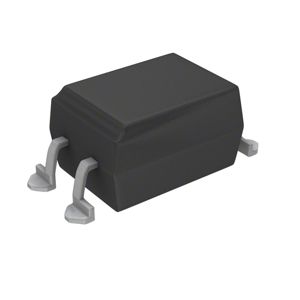

PS2502L-1-K-A
NTE Electronics, Inc

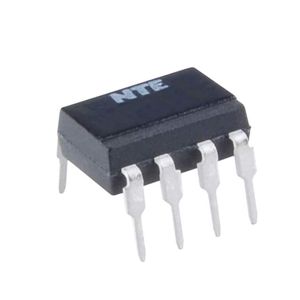

NTE3089
Würth Elektronik

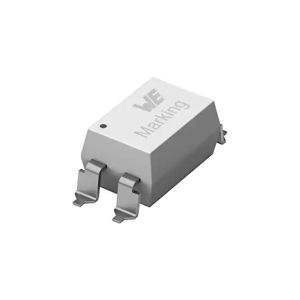

140817143400
