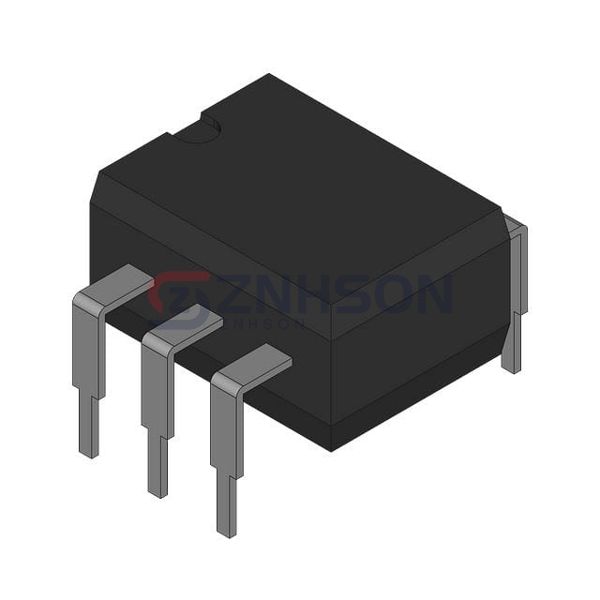

H11N1TVM
Fairchild Semiconductor
Fairchild Semiconductor
LOGIC IC OUTPUT OPTOCOUPLER, 750
$2.75
Available to order
Reference Price (USD)
1,000+
$3.01159
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Fairchild Semiconductor H11N1TVM Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Fairchild Semiconductor for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 4170Vrms
- Common Mode Transient Immunity (Min): -
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 50 mA
- Data Rate: 5MHz
- Propagation Delay tpLH / tpHL (Max): 330ns, 330ns
- Rise / Fall Time (Typ): 7.5ns, 12ns
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 30mA
- Voltage - Supply: 4V ~ 15V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
