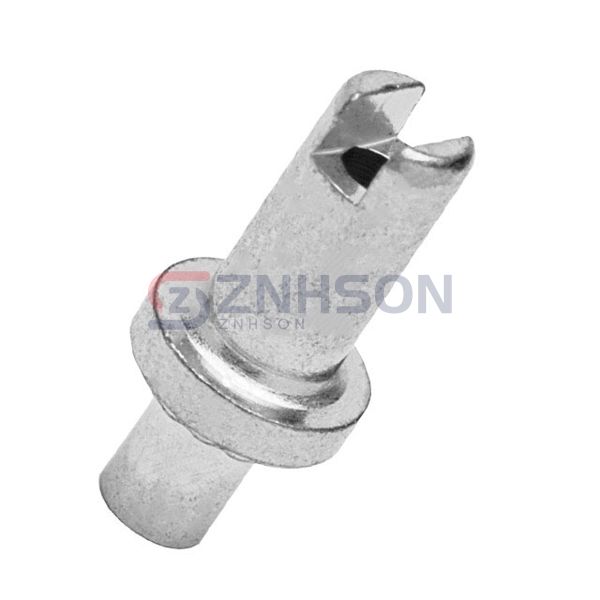

H3070-01
Harwin Inc.
Harwin Inc.
TERM TURRET HOLLOW L=6.25-6.63MM
$0.32
Available to order
Reference Price (USD)
12,000+
$0.25137
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust Harwin Inc.'s H3070-01 Turret Connectors for all your high-performance interconnection needs. With features like vibration resistance and thermal stability, these terminals excel in challenging environments. Perfect for robotics, HVAC systems, and LED lighting. Ready to order? Reach out to our sales team for personalized assistance.
Specifications
- Product Status: Active
- Terminal Type: Single End, Fork, Hollow
- Number of Turrets: Single
- Length - Above Board: 0.246" ~ 0.261" (6.25mm ~ 6.63mm)
- Length - Below Flange: 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
- Length - Overall: 0.340" ~ 0.360" (8.64mm ~ 9.15mm)
- Mounting Type: Through Hole
- Termination: Swage
- Flange Diameter: 0.153" ~ 0.159" (3.88mm ~ 4.04mm)
- Diameter - Turret Head: -
- Staking Side OD: 0.076" ~ 0.079" (1.93mm ~ 2.01mm)
- Staking Side ID: -
- Mounting Hole Diameter: 0.080" ~ 0.083" (2.03mm ~ 2.11mm)
- Board Thickness: 0.063" (1.60mm)
- Contact Material: Brass Alloy
- Contact Finish: Tin
- Contact Finish Thickness: -
- Insulation: Non-Insulated
