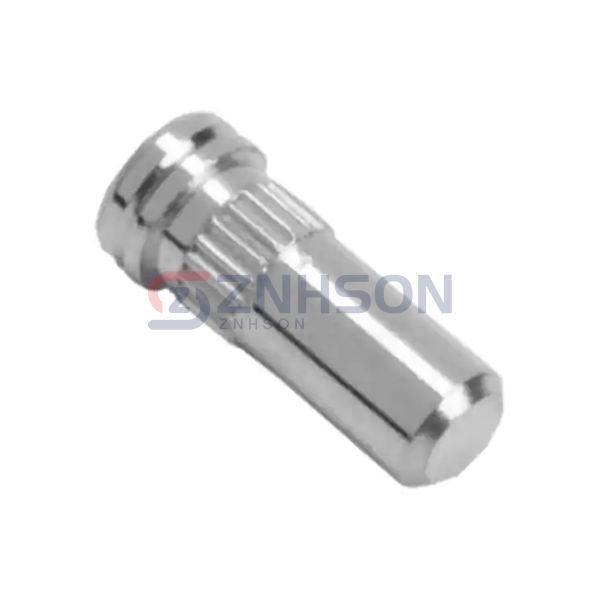

H8501-46
Harwin Inc.
Harwin Inc.
PCB SOCKET
$0.20
Available to order
Reference Price (USD)
2,000+
$0.18592
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose H8501-46 by Harwin Inc. for superior Connectors, Interconnects solutions. Our Terminals - PC Pin Receptacles, Socket Connectors are designed for high performance and ease of use. Features include solderless connections, high current capacity, and environmental protection. Perfect for automotive, consumer electronics, and industrial applications. Submit your inquiry today to receive a customized quote.
Specifications
- Product Status: Active
- Tail Type: No Tail
- Termination: Press-Fit, Knurled
- Length - Overall: 0.224" (5.69mm)
- Accepts Pin Diameter: 0.024" ~ 0.033" (0.60mm ~ 0.85mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: 0.075" ~ 0.077" (1.91mm ~ 1.96mm)
- Flange Diameter: 0.093" (2.36mm)
- Tail Diameter: -
- Socket Depth: 0.183" (4.65mm)
- Contact Material: Beryllium Copper
- Contact Finish: Tin
- Contact Finish Thickness: 157.5µin (4.00µm)
