HCNW2211#300
Broadcom Limited
Broadcom Limited
OPTOISO 5KV PUSH PULL 8DIP GW
$3.34
Available to order
Reference Price (USD)
1,386+
$2.44720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Broadcom Limited HCNW2211#300 Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Broadcom Limited for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 25 mA
- Data Rate: 5MBd
- Propagation Delay tpLH / tpHL (Max): 180ns, 160ns (Typ)
- Rise / Fall Time (Typ): 30ns, 7ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 4.5V ~ 20V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-DIP Gull Wing
Related Products
Broadcom Limited
HCPL-7720-060E
Toshiba Semiconductor and Storage
TLP2366(TPR,E
Everlight Electronics Co Ltd
EL0611(TA)-V
Broadcom Limited
HCPL-530K#200
Broadcom Limited
HCPL-263N-520E
Toshiba Semiconductor and Storage

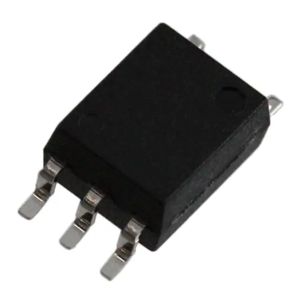

TLP2358(E)
