HCPL-0201-000E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV PUSH PULL 8SO
$3.34
Available to order
Reference Price (USD)
1+
$3.36000
10+
$2.97400
25+
$2.20680
100+
$1.91900
300+
$1.72710
500+
$1.53520
1,000+
$1.31931
2,500+
$1.24735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Broadcom Limited HCPL-0201-000E Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Broadcom Limited for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 5kV/µs, 10kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 25 mA
- Data Rate: 5MBd
- Propagation Delay tpLH / tpHL (Max): 300ns, 300ns
- Rise / Fall Time (Typ): 30ns, 7ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 4.5V ~ 20V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO Tall
Related Products
Broadcom Limited
ACPL-K64L-500E
Broadcom Limited
ACPL-M71U-500E
Toshiba Semiconductor and Storage
TLP250H(F)
onsemi
HCPL2601WV
Renesas Electronics America Inc
PS9351L-V-E3-AX
Toshiba Semiconductor and Storage

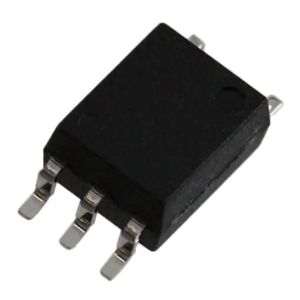

TLP2372(TPL,E
Everlight Electronics Co Ltd

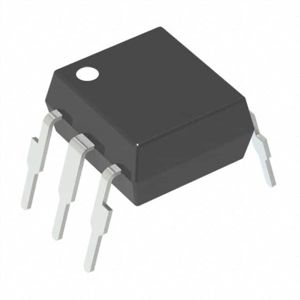

H11L3-V
