HCPL-0601
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV OPN COLLECTOR 8SO
$3.52
Available to order
Reference Price (USD)
1+
$3.22000
10+
$2.84900
25+
$2.11400
100+
$1.83820
300+
$1.65437
500+
$1.47056
1,000+
$1.26376
2,500+
$1.19483
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure flawless signal isolation with Broadcom Limited HCPL-0601 Optoisolators - Logic Output. These devices boast high noise immunity, low forward current, and long-term durability, making them a top choice for industrial control systems, PLCs, and instrumentation. Rely on Broadcom Limited's expertise for your isolation needs. Submit your inquiry today!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Rise / Fall Time (Typ): 24ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO Tall
Related Products
Broadcom Limited
ACPL-072L-500
Renesas Electronics America Inc
PS9513L3-AX
onsemi
H11N1SVM
Broadcom Limited
HCPL-2630
Everlight Electronics Co Ltd
EL2630S(TA)
onsemi
FOD060L
Broadcom Limited
HCPL-0611#560
Vishay Semiconductor Opto Division
VOH1016AB-T
Panasonic Electric Works

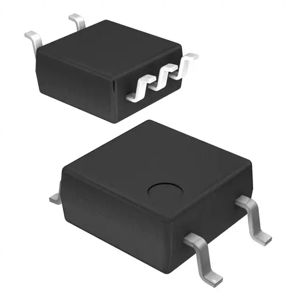

APS1551S
