HCPL-263L-300E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV OPEN COLL 8DIP GW
$5.70
Available to order
Reference Price (USD)
1+
$4.91000
10+
$4.09100
25+
$3.43600
100+
$2.94520
250+
$2.61792
500+
$2.37250
1,000+
$2.17615
2,500+
$2.08616
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Broadcom Limited HCPL-263L-300E Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Broadcom Limited for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 24ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 15mA
- Voltage - Supply: 2.7V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-DIP Gull Wing
Related Products
Broadcom Limited
HCPL-5651
Renesas Electronics America Inc
RV1S9160ACCSP-100V#SC0
Everlight Electronics Co Ltd
6N137S1(TB)-V
Broadcom Limited
5962-9800101KEA
Broadcom Limited
ACPL-772L-320E
Broadcom Limited
HCPL-261A-560E
Broadcom Limited
ACPL-P480-500E
Renesas Electronics America Inc

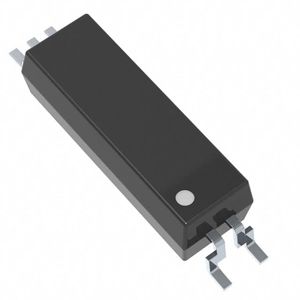

RV1S9231ACCSP-10YC#SC0
