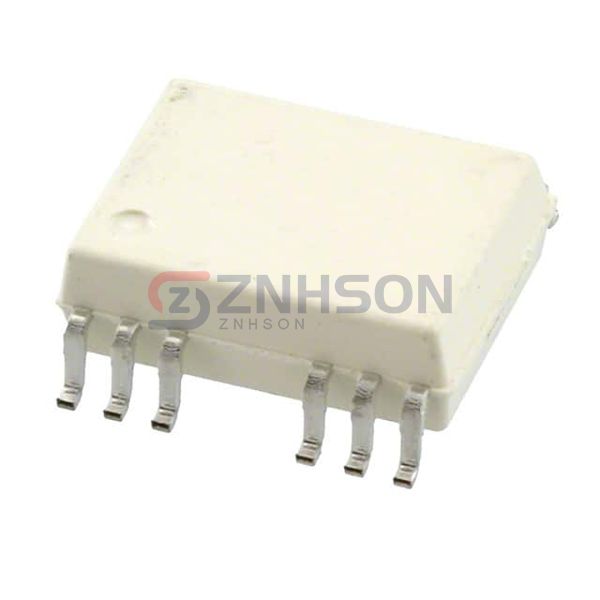

HCPL-314J-000E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 2CH GATE DRIVER 16SO
$5.10
Available to order
Reference Price (USD)
1+
$4.39000
10+
$3.66100
45+
$3.07556
135+
$2.63607
270+
$2.34319
540+
$2.12352
1,035+
$1.94779
2,520+
$1.86724
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with Broadcom Limited HCPL-314J-000E Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 2
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 700ns, 700ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 50ns, 50ns
- Current - Output High, Low: 500mA, -
- Current - Peak Output: 600mA
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 10V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SO
- Approval Agency: CSA, IEC/EN/DIN, UR
