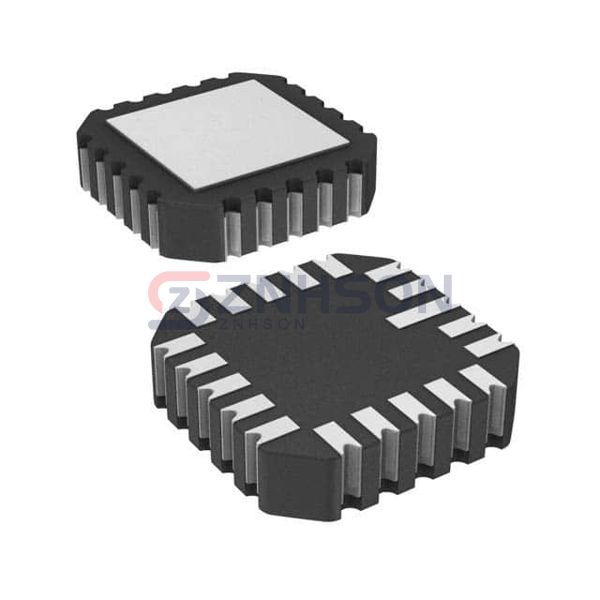

HCPL-6230
Broadcom Limited
Broadcom Limited
OPTOISO 1.5KV PUSH PULL 20LCCC
$140.29
Available to order
Reference Price (USD)
1+
$118.71000
10+
$112.77000
25+
$108.10680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Broadcom Limited HCPL-6230 Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Broadcom Limited for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 1500VDC
- Common Mode Transient Immunity (Min): 1kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 15 mA
- Data Rate: 5MBd
- Propagation Delay tpLH / tpHL (Max): 350ns, 350ns
- Rise / Fall Time (Typ): 45ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.3V
- Current - DC Forward (If) (Max): 8mA
- Voltage - Supply: 4.5V ~ 20V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 20-CLCC
- Supplier Device Package: 20-LCCC (8.89x8.89)
