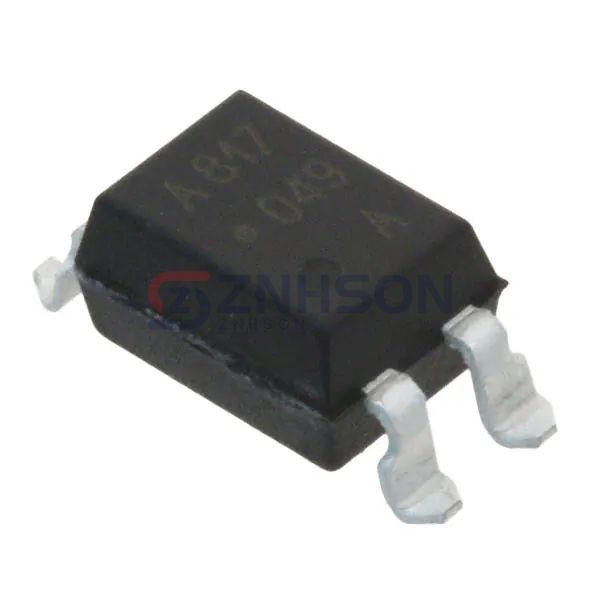

HCPL-817-560E
Broadcom Limited
Broadcom Limited
OPTOISOLATOR 5KV TRANSISTOR 4SMD
$0.16
Available to order
Reference Price (USD)
25,000+
$0.13300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronics with Broadcom Limited's HCPL-817-560E Optoisolators - Transistor, Photovoltaic Output, offering superior isolation and signal transmission. These components are perfect for applications requiring high voltage separation, such as power supplies, motor controls, and PLC systems. With robust construction and long-term durability, our optoisolators ensure seamless performance in demanding environments. Interested in learning more? Submit your inquiry now and let our experts assist you!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
