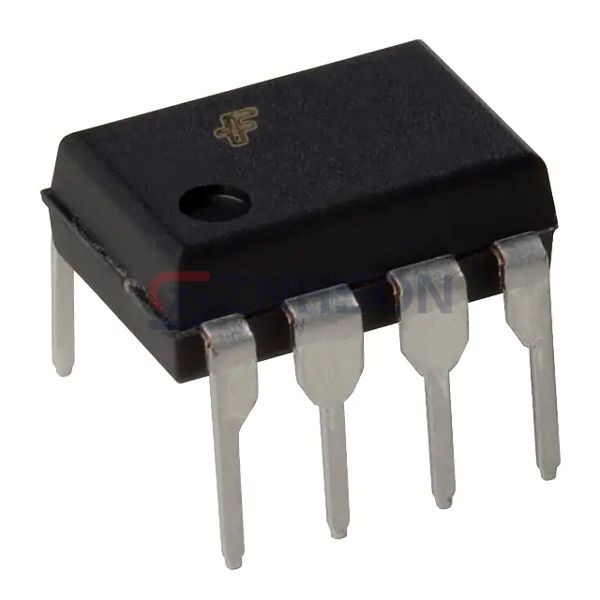

HCPL2630M
onsemi
onsemi
OPTOISO 5KV 2CH OPEN COLL 8DIP
$1.29
Available to order
Reference Price (USD)
1,000+
$1.21756
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The onsemi HCPL2630M Optoisolators - Logic Output are engineered for precision and reliability in demanding environments. Key features include high-speed data transmission, excellent EMI resistance, and robust packaging. Ideal for use in aerospace, defense, and telecommunications, these isolators deliver unmatched performance. Contact us to learn more or place an order!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 10kV/µs (Typ)
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 50 mA
- Data Rate: 10Mbps
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 30ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.45V
- Current - DC Forward (If) (Max): 30mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
