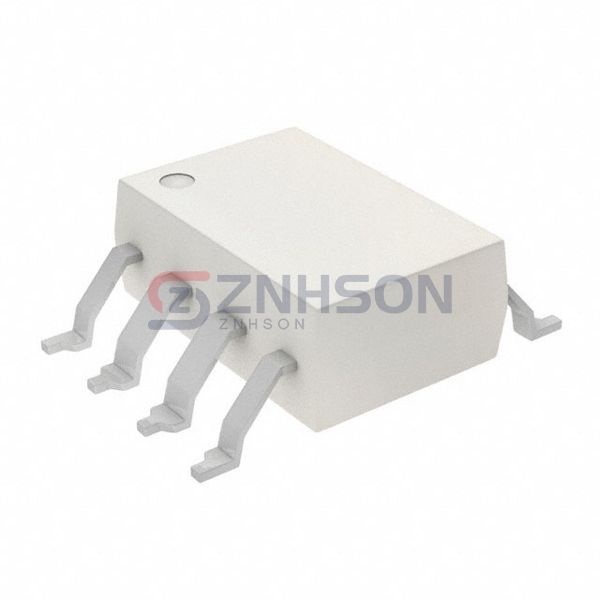

HCPL2631SM
onsemi
onsemi
OPTOISO 5KV 2CH OPEN COLL 8SMD
$1.37
Available to order
Reference Price (USD)
1,000+
$1.42629
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with onsemi HCPL2631SM Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust onsemi for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 5kV/µs
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 25 mA
- Data Rate: 10Mbps
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 30ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.45V
- Current - DC Forward (If) (Max): 30mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-SMD
