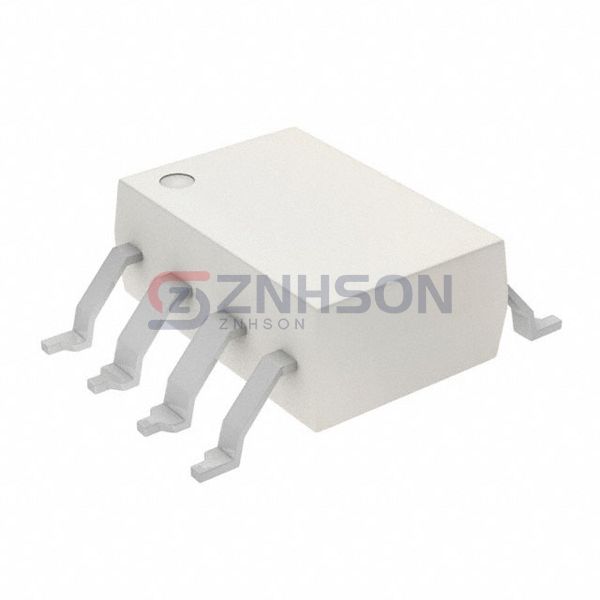

HCPL4503SDM
onsemi
onsemi
OPTOISO 5KV TRANS W/BASE 8SMD
$2.41
Available to order
Reference Price (USD)
1,000+
$0.99825
2,000+
$0.94380
5,000+
$0.90750
10,000+
$0.88935
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with HCPL4503SDM Optoisolators from onsemi. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by onsemi's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 19% @ 16mA
- Current Transfer Ratio (Max): 50% @ 16mA
- Turn On / Turn Off Time (Typ): 250ns, 260ns
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 20V
- Current - Output / Channel: 8mA
- Voltage - Forward (Vf) (Typ): 1.45V
- Current - DC Forward (If) (Max): 25 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-SMD
