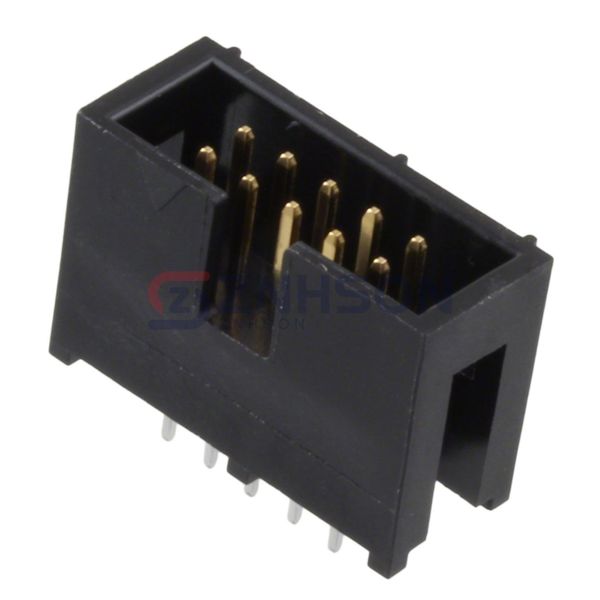

HIF3F-10PA-2.54DSA(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 10POS 2.54MM
$2.62
Available to order
Reference Price (USD)
1+
$2.38000
10+
$2.15600
100+
$1.84800
600+
$1.54000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF3F-10PA-2.54DSA(71) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Hirose Electric Co Ltd for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.622" (15.80mm)
- Insulation Height: 0.547" (13.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 200V
Related Products
Molex
0702800793
Preci-Dip
451-80-232-00-016101
Samtec Inc.
FTSH-125-04-S-D
TE Connectivity AMP Connectors
1376113-8
Harwin Inc.
M80-5132642P
Samtec Inc.
TSM-106-04-L-DV-P
Samtec Inc.
FTSH-150-05-F-DV-A-P

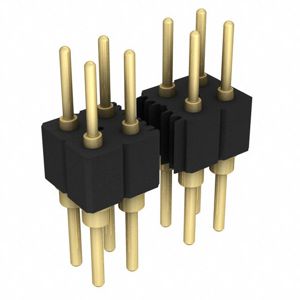

Preci-Dip
