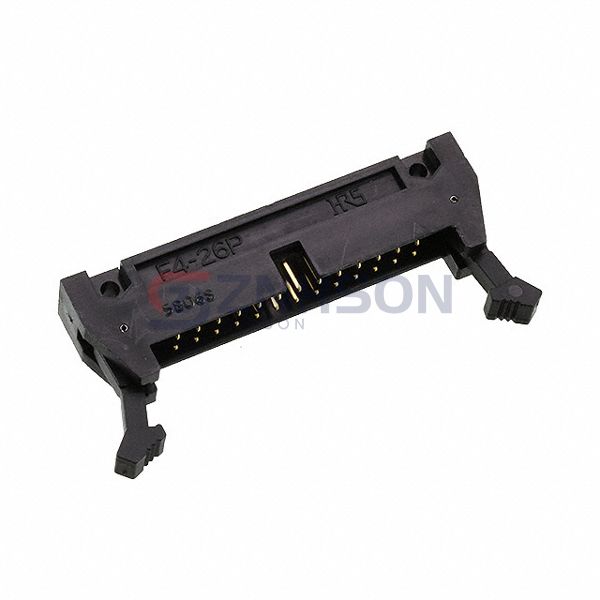

HIF4-26P-3.18DS
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 26POS 3.18MM
$13.10
Available to order
Reference Price (USD)
1+
$11.43000
20+
$10.93400
100+
$9.19450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF4-26P-3.18DS Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.125" (3.18mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.125" (3.18mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.201" (5.10mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
