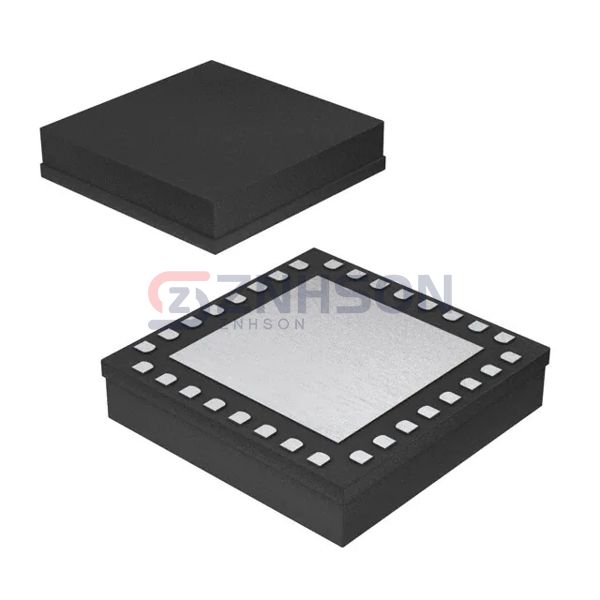

HMC509LP5E
Analog Devices Inc.
Analog Devices Inc.
VCO 4.15GHZ/8.3GHZ 2-13V 5X5MM
$41.74
Available to order
Reference Price (USD)
1+
$38.64000
10+
$35.66900
100+
$30.21970
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with Analog Devices Inc.'s HMC509LP5E VCOs (Voltage Controlled Oscillators), engineered for optimal performance. Featuring low jitter, high output power, and excellent linearity, these VCOs are perfect for radar systems, wireless infrastructure, and satellite communications. Trust Analog Devices Inc. for components that meet the highest industry standards. Submit your inquiry now to learn more about how our VCOs can enhance your projects.
Specifications
- Product Status: Active
- Frequency Range: 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz
- Frequency - Center: 4.15GHz, 8.3GHz
- Voltage - Supply: 5V
- Tuning Voltage (VDC): 2 V ~ 13 V
- 2nd Harmonic, Typ (dBc): 10
- Icc Max: 270mA
- Pushing (MHz/V): 10
- Power (dBm): 7.5±2.5, 12.5±2.5
- Phase Noise Typ (dBc/Hz): -115
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 32-VFQFN Exposed Pad
- Size / Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
- Height: 0.039" (1.00mm)
