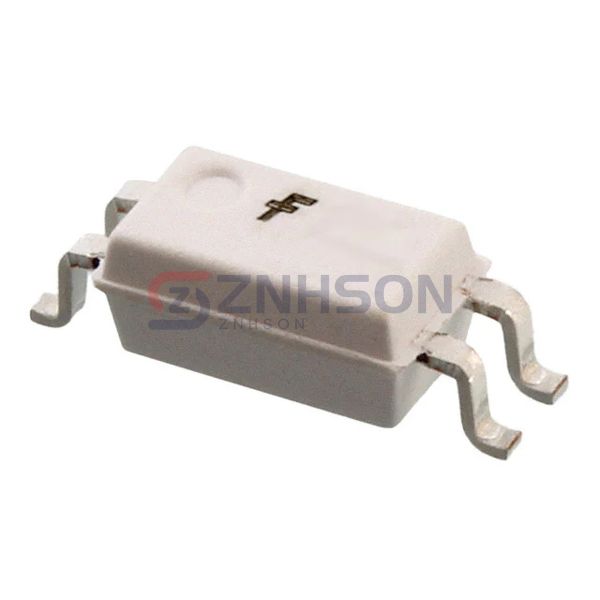

HMHA2801AR2
onsemi
onsemi
OPTOISO 3.75KV TRANS 4-MINI-FLAT
$0.82
Available to order
Reference Price (USD)
1+
$0.82000
500+
$0.8118
1000+
$0.8036
1500+
$0.7954
2000+
$0.7872
2500+
$0.779
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality HMHA2801AR2 Optoisolators with Photovoltaic Output from onsemi, designed for reliable signal isolation in various electronic applications. These optoisolators feature excellent noise immunity, high voltage isolation, and stable performance, making them ideal for industrial automation, medical equipment, and communication systems. Whether you need to protect sensitive circuits or ensure signal integrity, our optoisolators deliver unmatched reliability. Contact us today for a quote and find the perfect solution for your needs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 80% @ 5mA
- Current Transfer Ratio (Max): 160% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 3µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.3V (Max)
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 4-SOIC (0.173", 4.40mm Width)
- Supplier Device Package: 4-Mini-Flat
Related Products
Broadcom Limited
HCPL-5700#200
Broadcom Limited
HCPL-250L-500E
Würth Elektronik
140814242000
Everlight Electronics Co Ltd
EL827S(TA)-V
Broadcom Limited
HCPL-2730-300E
onsemi
MCT6W
Vishay Semiconductor Opto Division
6N136-X007T
onsemi
H11AV1SM
onsemi

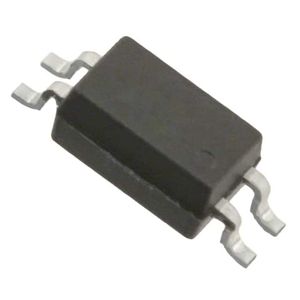

FODM214R2
