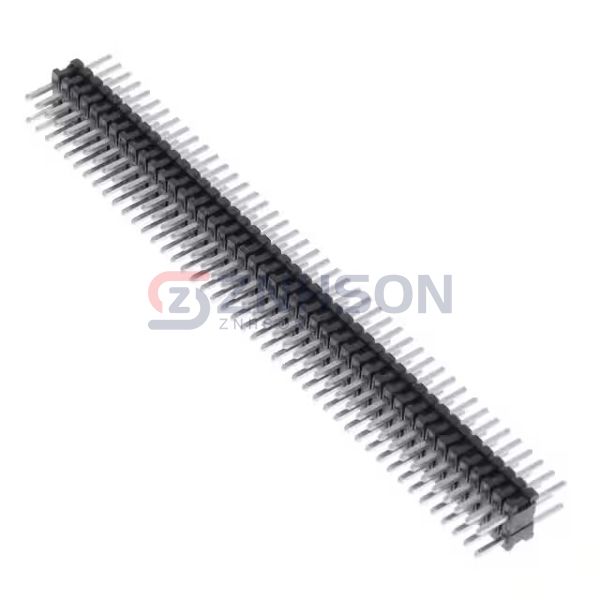

HMTMS-145-25-T-D-115
Samtec Inc.
Samtec Inc.
CONN HDR .050" 90POS
$11.33
Available to order
Reference Price (USD)
1+
$11.33000
500+
$11.2167
1000+
$11.1034
1500+
$10.9901
2000+
$10.8768
2500+
$10.7635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HMTMS-145-25-T-D-115 Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 90
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.115" (2.92mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 0.330" (8.38mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
