HNC2-2.5P-8DS(02)
Hirose Electric Co Ltd
Hirose Electric Co Ltd

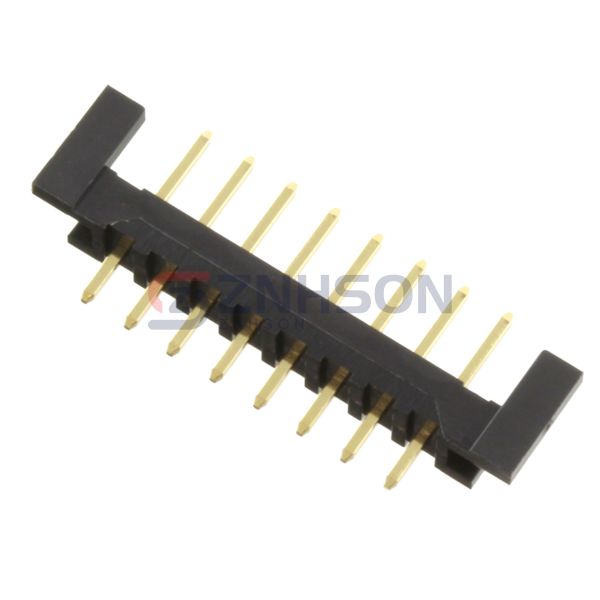

CONN HEADER VERT 8POS 2.5MM
$1.42
Available to order
Reference Price (USD)
1+
$1.28000
10+
$1.12200
25+
$1.05600
50+
$1.01200
100+
$0.96800
250+
$0.88000
500+
$0.79200
1,000+
$0.70400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HNC2-2.5P-8DS(02) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.433" (11.00mm)
- Insulation Height: 0.256" (6.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
