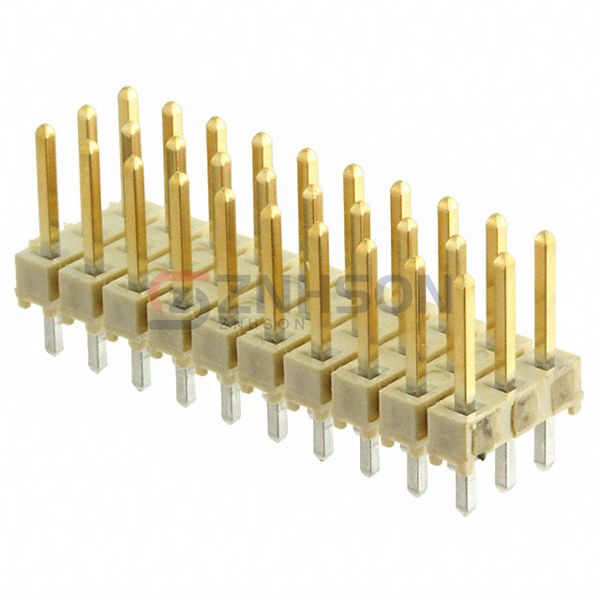

HTSW-110-07-L-T
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 30POS 2.54MM
$4.67
Available to order
Reference Price (USD)
1+
$2.68000
10+
$2.56800
100+
$2.14000
500+
$1.81900
1,000+
$1.55150
5,000+
$1.39100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HTSW-110-07-L-T Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 3
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.430" (10.92mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
