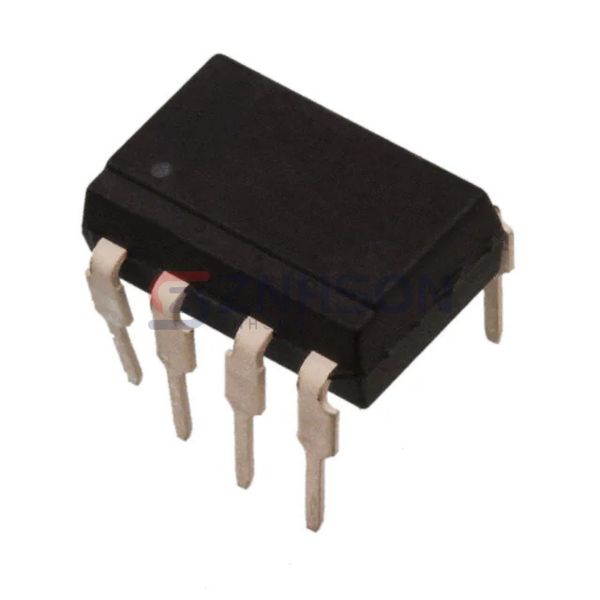

ICPL3120
Isocom Components 2004 LTD
Isocom Components 2004 LTD
OPTOISO 5KV 1CH GATE DRIVER 8DIP
$2.13
Available to order
Reference Price (USD)
1+
$2.14000
10+
$1.89700
25+
$1.40760
100+
$1.22400
400+
$1.10160
800+
$0.88740
1,200+
$0.84150
2,800+
$0.79560
5,200+
$0.76500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Isocom Components 2004 LTD ICPL3120 Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 500ns, 500ns
- Pulse Width Distortion (Max): 100ns
- Rise / Fall Time (Typ): 100ns, 100ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.37V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- Approval Agency: -
