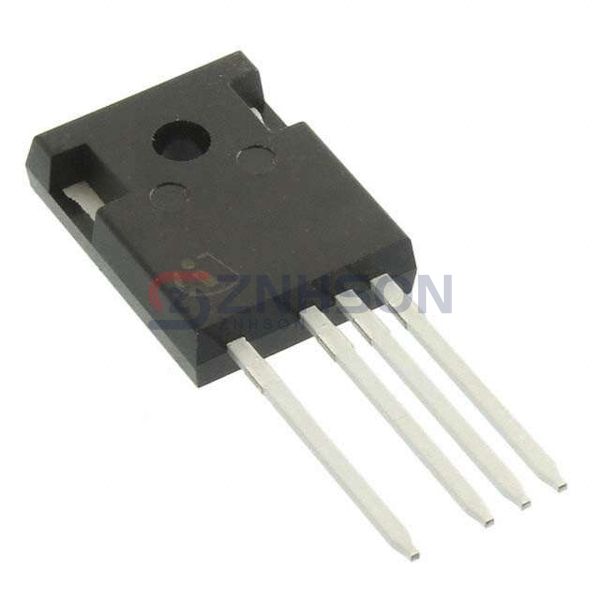

IKZ75N65ES5XKSA1
Infineon Technologies
Infineon Technologies
IGBT TRENCH 650V 80A TO247-4
$8.63
Available to order
Reference Price (USD)
1+
$9.04000
10+
$8.23000
240+
$6.92358
720+
$6.11151
1,200+
$5.40538
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IKZ75N65ES5XKSA1 Single IGBT by Infineon Technologies is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust Infineon Technologies for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Active
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 1.75V @ 15V, 75A
- Power - Max: 395 W
- Switching Energy: 1.3mJ (on), 1.5mJ (off)
- Input Type: Standard
- Gate Charge: 164 nC
- Td (on/off) @ 25°C: 46ns/405ns
- Test Condition: 400V, 15A, 22.3Ohm, 15V
- Reverse Recovery Time (trr): 72 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: PG-TO247-4
