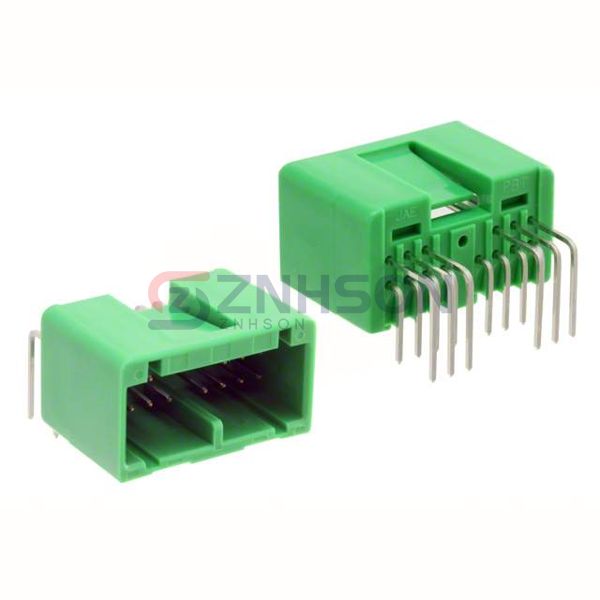

IL-AG5-14P-D3L2-A
JAE Electronics
JAE Electronics
CONN HEADER R/A 14POS 2.5MM
$1.73
Available to order
Reference Price (USD)
1+
$1.65000
10+
$1.49500
100+
$1.28100
500+
$1.06750
1,000+
$0.91500
5,000+
$0.81130
10,000+
$0.79300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with IL-AG5-14P-D3L2-A JAE Electronics Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.331" (8.40mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.591" (15.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Board Guide
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
