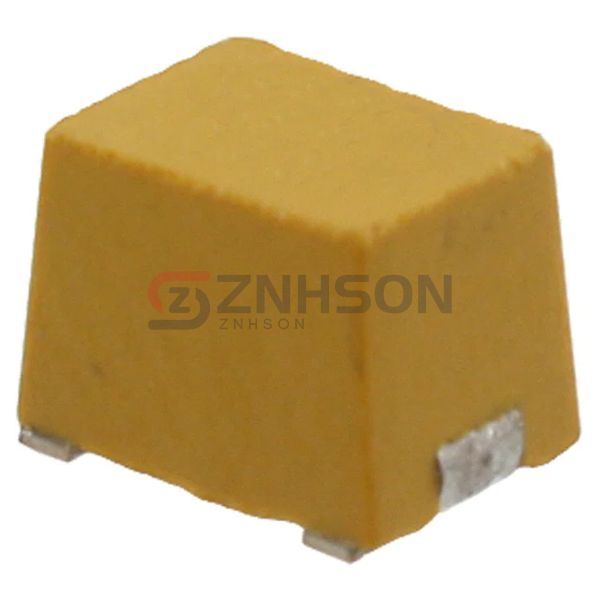

IMC1812BN220J
Vishay Dale
Vishay Dale
FIXED IND 22UH 180MA 3.2 OHM SMD
$0.90
Available to order
Reference Price (USD)
500+
$0.86190
1,000+
$0.78585
2,500+
$0.76050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuits with IMC1812BN220J Fixed Inductors from Vishay Dale, designed for efficiency and reliability. These inductors feature low core losses, high impedance, and excellent noise suppression, making them ideal for telecommunications, automotive electronics, and renewable energy solutions. IMC1812BN220J ensures top-notch performance. Have questions about specifications? Reach out to us for detailed information!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Iron Powder
- Inductance: 22 µH
- Tolerance: ±5%
- Current Rating (Amps): 180 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 3.2Ohm Max
- Q @ Freq: 50 @ 2.52MHz
- Frequency - Self Resonant: 13MHz
- Ratings: -
- Operating Temperature: -55°C ~ 125°C
- Inductance Frequency - Test: 2.52 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1812 (4532 Metric)
- Supplier Device Package: 1812
- Size / Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max): 0.134" (3.40mm)
