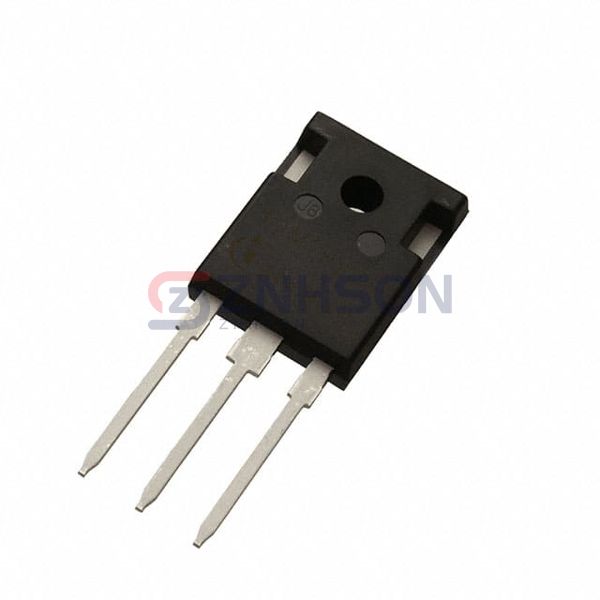

IMW120R030M1HXKSA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 56A TO247-3
$28.15
Available to order
Reference Price (USD)
1+
$28.15000
500+
$27.8685
1000+
$27.587
1500+
$27.3055
2000+
$27.024
2500+
$26.7425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover IMW120R030M1HXKSA1, a versatile Transistors - FETs, MOSFETs - Single solution from Infineon Technologies, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 56A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V, 18V
- Rds On (Max) @ Id, Vgs: 40mOhm @ 25A, 18V
- Vgs(th) (Max) @ Id: 5.7V @ 10mA
- Gate Charge (Qg) (Max) @ Vgs: 63 nC @ 18 V
- Vgs (Max): +23V, -7V
- Input Capacitance (Ciss) (Max) @ Vds: 2120 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 227W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO247-3-41
- Package / Case: TO-247-3
