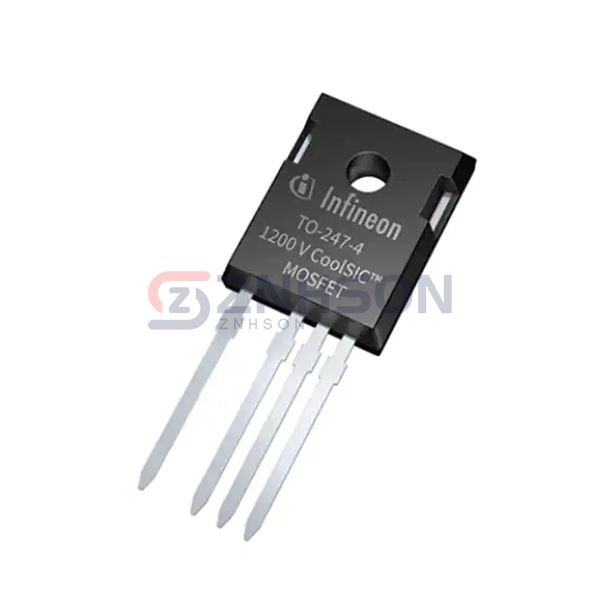

IMZ120R045M1XKSA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1200V 52A TO247-4
$23.59
Available to order
Reference Price (USD)
1+
$23.59000
500+
$23.3541
1000+
$23.1182
1500+
$22.8823
2000+
$22.6464
2500+
$22.4105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IMZ120R045M1XKSA1 from Infineon Technologies, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, IMZ120R045M1XKSA1 delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V
- Rds On (Max) @ Id, Vgs: 59mOhm @ 20A, 15V
- Vgs(th) (Max) @ Id: 5.7V @ 10mA
- Gate Charge (Qg) (Max) @ Vgs: 52 nC @ 15 V
- Vgs (Max): +20V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1900 pF @ 800 V
- FET Feature: Current Sensing
- Power Dissipation (Max): 228W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO247-4-1
- Package / Case: TO-247-4
