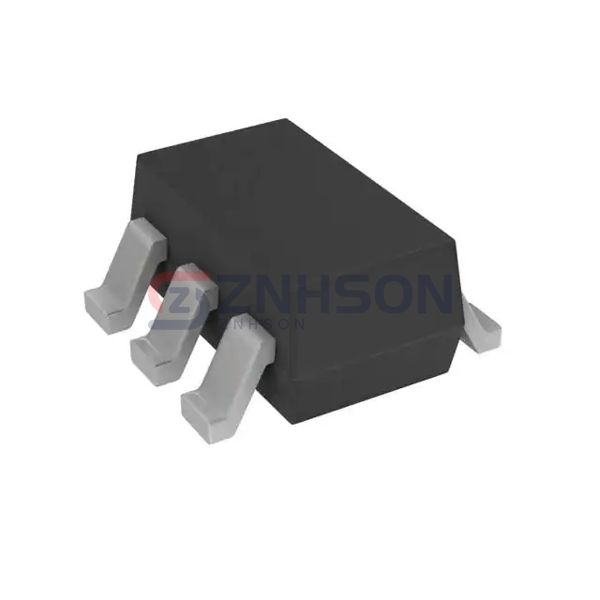

IMZ2A_R1_00001
Panjit International Inc.
Panjit International Inc.
COMPLEMENTARY DUAL GENERAL PURPO
$0.35
Available to order
Reference Price (USD)
1+
$0.35000
500+
$0.3465
1000+
$0.343
1500+
$0.3395
2000+
$0.336
2500+
$0.3325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IMZ2A_R1_00001 Bipolar Junction Transistor Arrays from Panjit International Inc. are built for high-efficiency and long-lasting operation. Key benefits include matched transistor pairs, low distortion, and wide operating temperature range, ideal for RF and power amplification. Commonly found in broadcasting equipment, instrumentation, and security systems. Interested in learning more? Submit an inquiry and our experts will guide you through the selection process!
Specifications
- Product Status: Active
- Transistor Type: NPN, PNP
- Current - Collector (Ic) (Max): 150mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 5mA, 50mA, 500mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 120 @ 1mA, 6V
- Power - Max: 300mW
- Frequency - Transition: 180MHz, 140MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
Related Products
onsemi
NSV40301MDR2G
onsemi
MBT3904DW1T3G
Nexperia USA Inc.
BCM847BV,315
Diodes Incorporated
ZDT1053TA
Central Semiconductor Corp
MPQ2222A PBFREE
Microchip Technology
JANTXV2N6987U/TR
Nexperia USA Inc.
PBSS4160DSH
onsemi
NSVEMT1DXV6T1G
Central Semiconductor Corp

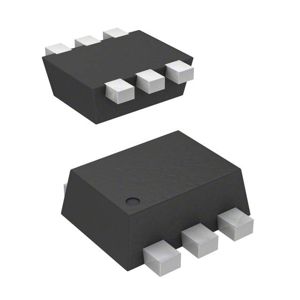

CMLT3906EG TR PBFREE
