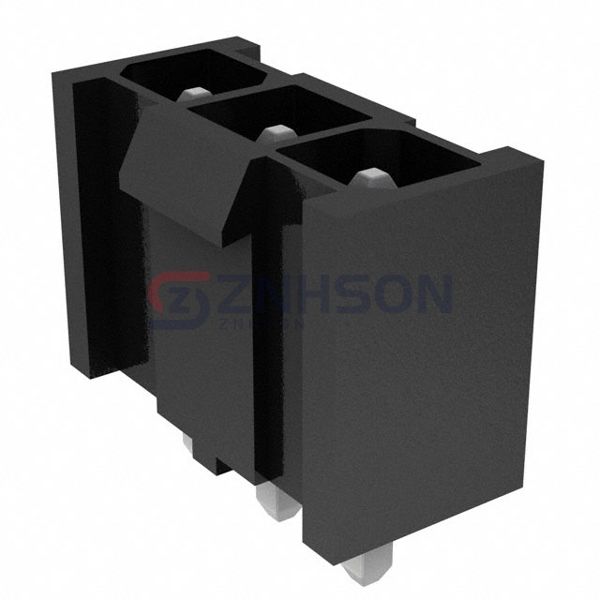

IPBT-103-H1-T-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 3POS 4.2MM
$2.04
Available to order
Reference Price (USD)
1+
$1.25000
40+
$1.03675
120+
$0.95042
520+
$0.77760
1,000+
$0.69120
5,000+
$0.60480
10,000+
$0.57456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with IPBT-103-H1-T-S Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.380" (9.65mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
